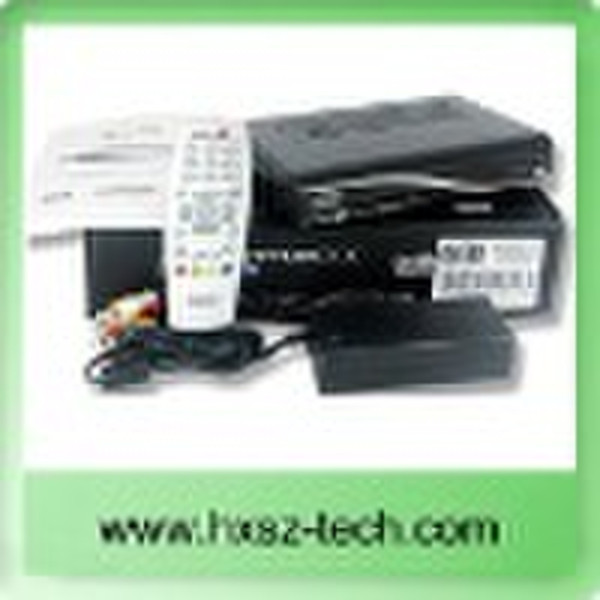

dreambox dm500 /BLACKBOX 500

dreambox dm500 /BLACKBOX 500 Features: l 250 MHz IBM PowerPC Processor (350 Mips) l Linux operating system l 1 card reader l MPEG2 hardware decompression l DVB-S, DVB-C l V.24/RS232 interface l 100Mbit Ethernet interface two-way l 2 LED instructions l Unlimited number of TV / radio channel list l Channel switching time less than 1 second l Full automatic service scan l EPG (Electronic Program Guide) l Support for DiSEqC l Multi-lingual l The number of bit-stream output SPDI / F interface (AC-3 / DTS) l 1 European Scart plug (software control) Technical parameters: DBC-Tuner: l IF input :950-2150 MHz l Signal Level - 65 dBm .... - 25 dBm l Signal-to-Noise 12 dB maximum. l Mother of the first socket F l 75 ohm input impedance l AFC + / - 3 MHz l QPSK l The scope of input symbol rate 2 .... 45 M, SCPC / MCPC l Forward error correction 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8, automatic Video decoder: l MPEG-2 and MPEG-1 compatible l PAL G / 25 Hz standard l Video proportion of 4:3 / 16:9 (automatic) Audio decoder: l MPEG-1 & MPEG-2 Layer I and II l Stereo l Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Analog output: l Output Level L / R 0,5 Vss 600 ohm l THD> 60 dB (1 kHz) l Isolation <-65 dB Digital output l Output Level 0,5 Vss 75 ohm l Sampling digital filter 32 kHz, 44.1 kHz, 48 kHz l S/PDIF- optical output (AC3) Video parameters: l Input FBAS 1 Vss + / - 0.3 dB on 75 Ohm l Teletext filter: ETS 300 472 standard European Scart plug: l Output: FBAS, RGB, S-VHS RS232 interface: l Bitrate 115,2 kBit / s maximum. l Pin SUB-D-9 l Firmware upgrade Ethernet port l I firmware upgrade network lNB power and polarisation: l LNB Current 500mA maximum. Short-circuit protection l Vertical polarization LNB voltage <14V without load,> 11.5V (400mA) l Horizontal polarization LNB voltage <20V without load,> 17,3 V (400mA) l LNB power-down standby Receive control l DiSEqC 1.0/1.2 SAT location / SAT Select l DiSEqC - motor control l Power consumption: <10W / 12V l Input voltage: DC12V, AC + / - 15% External power supply: l Input :110-240V AC / 50-60Hz / 0,6 A l Output: 12V = / 1A Physical Specification: l Temperature of +15 ° C. .. +35 ° C l Humidity <80% l Dimensions (W x D x H): 195 mm x 130 mm x 40 mm
